Service lifts for retail and stores
When you need to move bulky but lighter goods between floors, our range of floor loading trolley lifts fit the bill.

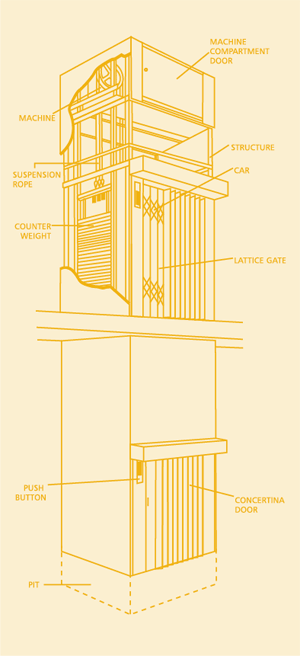

The standard trolley lift incorporates British Standard 2 hour fire rated galvanised landing shutter doors to minimise door intrusion into the loading space, while an electronically interlocked lattice gate fitted to the car prevents goods falling out when in motion.
| B.K.G Type: | 300.30/42 | |
|---|---|---|
| Rated Load (KG) | 250 | |
| Speed (M.P.S.) | 0.30 | |
| Traction Drive-Rope Suspended-No of Ropes | 5 | |
| Car Width* | min | 400 |
| max | 1000 | |
| Car Depth* | min | 900 |
| max | 1000 | |
| Car Height* | 1200* | |
| Doors at Service Level | - | |
| Doors at Floor Level | yes | |
| Through Entry Loading | yes | |
| Adjacent Entry Loading | - | |
| Lift Shaft Width = Car Width + | 570 | |
| Lift Shaft Depth = Car Depth + | 140 | |
| Headroom = Car or Door Height + Serving Height + | 1400 | |
| Pit Depth | 350 | |
| Car Door Type | Lattice gate | |
| Landing Door Type | Cont. shutter door | |
| Two Tier Car | - | |
